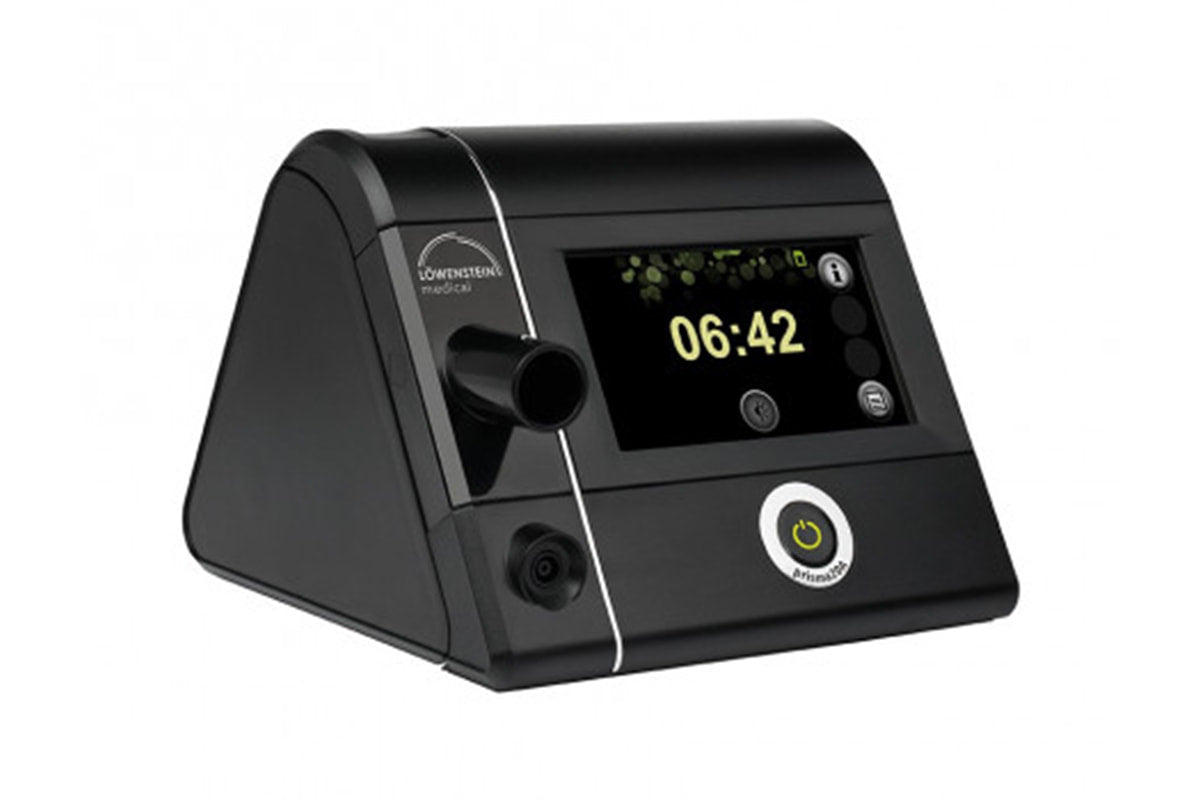

Prisma 30ST BiLevel Bundle (Incl. PrismaAQUA Humidifier, Heated Hose)
We aim to process and dispatch orders within 1-3 business days from our 🇦🇺 Sydney warehouse (stock permitting).
Our friendly team of specialists are here to make sure you get the best support, advice and price.
Note: A valid prescription is required. If you don’t have one, please consult your sleep physician. If you already have one, submit it through our contact page after purchase, quoting your order number.
The Prisma 30ST is the device of choice for patients suffering from respiratory insufficiency, such as position-dependent hypoventilation and/or COPD, and simultaneously exhibiting sleep-related breathing disorders. A wide pressure range, various automatic functions, as well as process- and comfort-supporting features enable a safe, effective, and whisper-quiet BiLevel ST therapy made in Germany. This bundle does NOT include a modem.
Key Features
- Wide pressure range: Adjustable from 4–30 cmH2O, with multiple ventilation modes to suit individual needs.
- Auto S/T mode with target volume control: Provides synchronised and natural breathing support, with autoEPAP and back-up rate included.
- Customisable target volume: Set between 300 ml and 2,000 ml, allowing tailored therapy for each patient.
- SCOPES pre-sets: Indication-specific defaults for a faster, simpler therapy start.
Product Features
- Effortless and consistent application: The combination of a large screen (touch, LED) and intelligent menu navigation makes operation intuitive and fast. It's the ideal support for your various work processes.
- Sensorless intelligent humidification: When using the prismaAQUA humidifier, smartAQUAcontrol can optionally be switched on to quickly warm up the applied flow at the start of therapy and to ensure humidifier performance during periods of increased leakage. prismaAQUA can also be used with a heated breathing circuit.
- Pressure reaction fits patient’s needs: Patients react with varying sensitivity to pressure adjustments. For effective therapy and breathing comfort, two options for pressure adjustments are available in APAP mode. In addition, pressure increases at closed central events are avoided.
- Precise event recognition: With the help of “Forced Oscillation Technique” (FOT) in modes without back-up frequency or with “Forced Breath Technology” (FBT) in modes with backup frequency, reliable differentiation is made between central and obstructive apnoea. Hypopnoea is also reliably recognised, as are Cheyne–Stokes respiration, flow limitations, snoring and RERA.
- Fall asleep comfortably – softSTART: The softSTART function gradually increases therapy pressure over a set period, helping patients who find high pressure uncomfortable while awake. This makes it easier to fall asleep and transition smoothly into therapy.
- Pressure relief softPAP: For comfortable exhalation during therapy, the pressure in CPAP and autoCPAP mode is reduced at the start of expiration and increased again in time for inhalation. This helps facilitate exhalation and effectively prevent events.
What’s in the Box
- Lowenstein prisma30ST BiPAP device
- prismaAQUA humidifier
- prismaHYBERNITE 15 mm heated breathing tube
- Power supply unit
- prismaBAG carrying bag
- 2× air filters
- SD card
- Instructions for use (device & humidifier, multilingual)
Specifications
- Therapy type: BiLevel-ST with adjustable target volume
- Target volume range: 300–2,000 ml
- Pressure range: 4–30 cmH2O
- Comfort features: BiSoft 1/2, autoPDIFF, autoTriLevel, softSTART
- Connectivity: prisma JOURNAL, prisma APP, prismaTS, prisma CLOUD (with included modem)
